Original Mitsubishi HMI Touch Screen 5.7 Inch F940GOT-LWD-E

Name: Original Mitsubishi HMI Touch Screen 57 Inch F940GOTLWDE
Brand: Mitsubishi
Price: 120 USD

Quality Original Mitsubishi HMI Touch Screen 5.7 Inch F940GOT-LWD-E wholesale

Place of Origin : China/Japan

Brand Name : Mitsubishi

Model Number : F940GOT-LWD-E

Packaging Details : Carton packaging

Supply Ability : 10pc/per week

Price : $120-$800

MOQ : 1/pc

Payment Terms : T/T, western union

Condition : 100% original and new

Warranty : 1Year

Package : Original Packing

Shipping Ways : DHL,FedEx,EMS

MOQ : 1 piece

Model number : F940GOT-LWD-E

Brand : Mitsubishi

Product name : Touch Screen HMI

Delivery time : 1-2days

Port : selectable

Contact Now

Original Mitsubishi Touch Screen F940GOT-LWD-E HMI With Best Price

Product Details

F900GOT Touchscreen Operator Interface (F940GOTLWDE)
Manufacturer: Mitsubishi
Series: F900GOT

Product Description

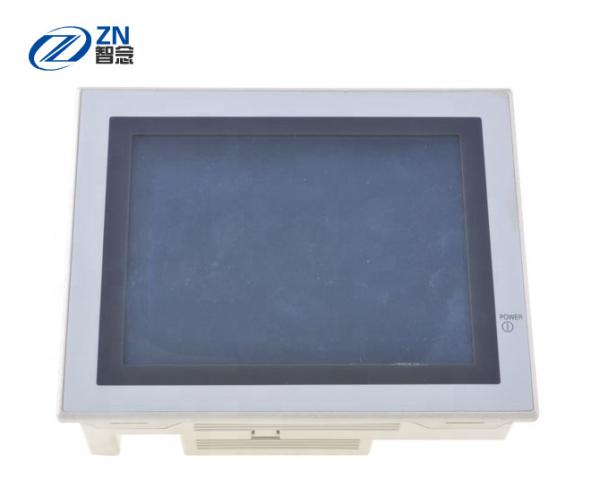

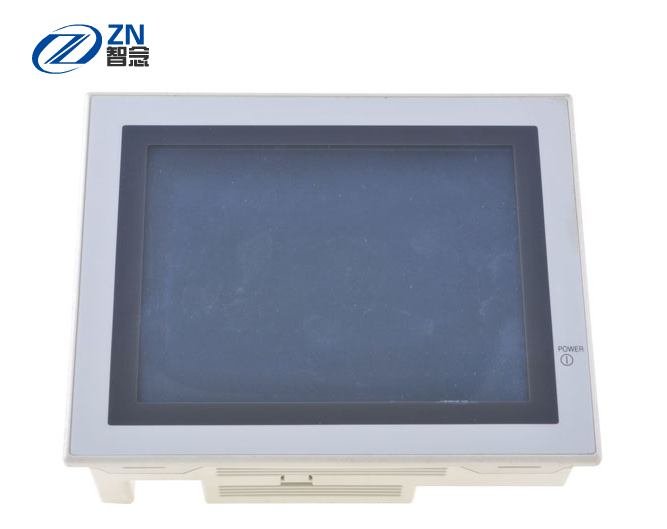

The Mitsubishi F940GOT-LWD-E (F940GOTLWDE) is a F900GOT series touchscreen operator interface. The operator interface data memory is built-in at 512kB. The front panel touchscreen dimensions are (height times width) 130mm by 162mm (5.12in by 6.38in). The effective display based on a diagonal measurement is 5.7 inches, and its height times width measurement is 86mm by 115mm (3.39in by 4.53in). The resolution of the F940GOT-LWD-E touchscreen is 320 x 240 dots, fitting 40 characters per line on 15 lines. This operator interface display can have a life of 50,000 hours or more as long as working temperatures remain around a stable 25°C (77°F).

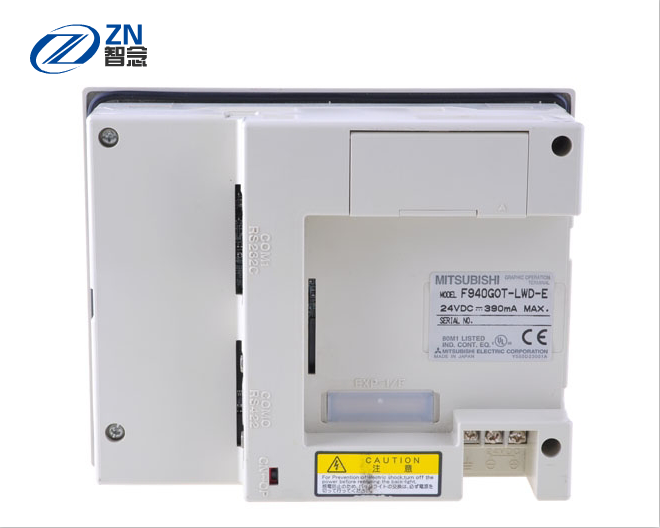

The F940GOT-LWD-E operator interface has a current consumption of 390mA/24VDC and it is able to withstand the voltage of 500VAC for one minute. The insulation resistance for this touchscreen is 5MΩ. There is an incorporated battery compartment for the PM-20BL battery. The F940GOT-LWD-E has two built-in interfaces, a RS-422 and a RS-232C interface which permits the touchscreen operator interface to connect to many PLCs from the following series: the Melsec-F FX, the MELSEC A, the Melsec-QnA, and the Melsec-Q series and the FREQROL series inverter.

The F940GOT-LWD-E touchscreen has an enclosure rating of IP65F for the front panel. This enclosure rating denotes that this product is entirely protected from impinging dust and from direct water exposure from low-pressured jets. In addition to this, the touchscreen is protected from oil complicity. The ambient temperatures of the F940GOT-LWD-E should be between "0-50 degrees Celsius (32-122 degrees Fahrenheit)" to maintain efficiency in operation.

Here is the source material referenced:
https://dl.mitsubishielectric.com/dl/fa/document/manual/got/jy992d94201/jy992d94201e.pdf
https://www.enclosurecompany.com/ip-ratings-explained.php

Technical Specifications

Part Number: F940GOT-LWD-E (F940GOTLWDE)
Module Type: Operator Interface
Touchscreen Dimensions: 86mm by 115mm (3.39in by 4.53in)
Screen Resolution: 320 x 240 dots
Voltage: 24VDC
Weight: 5lbs (Approx.)
