Home > Mitsubishi PLC Module >

FX2N-4AD-PT Mitsubishi Electric Input Block I/O Module

Product Categories
Changsha Zhinian Automation Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

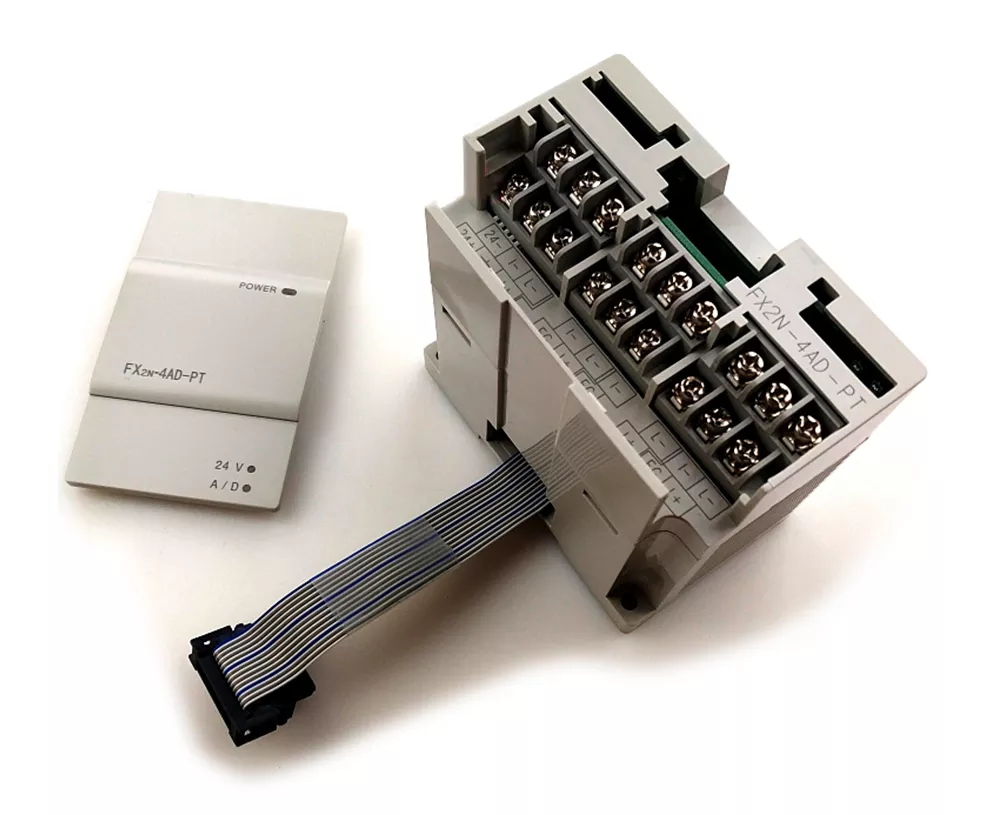

FX2N-4AD-PT Mitsubishi Electric Input Block I/O Module

  • 1
  • 2

Brand Name : MITSUBISHI

Model Number : FX2N-4AD-PT

Place of Origin : China/Japan

MOQ : 1/pc

Price : $50-$500

Payment Terms : T/T, western union

Supply Ability : 10pc/per week

Packaging Details : Carton packaging

Max input /output points : 16 points

Supply voltage : 100-240VAC

Input points : 8 points.

output points : 8 points

Output type : Relay

Power consumption : 30W

Weight : 0.6 Kg

Dimension (WxHxD) : 130x90x86mm

Port : Selectable

Model number : FX2N-4AD-PT

Contact Now

FX2N-4AD-PT Mitsubishi Electric Input Block I/O Module

Product Details

Additional Modules for Mitsubishi FX1S, FX1N & FX2N PLC's

Products in this range are for use with FX1S, FX1N and FX2N PLC, unless specified otherwise. All are DIN rail mount and are 90mm high and 87mm deep. The width varies and is tabled below.

All of the following products, except the Extension Cable, attach directly to the right hand end of the previous unit, block or module using the short integral lead.

Attribute Value
For Use With FX2N Series, FX3U Series
Input Type Analogue
Series FX2N Series, FX3U Series
Maximum Operating Temperature +55°C
Dimensions 90 x 55 x 87 mm

FX2N-4AD-PT Mitsubishi Electric Input Block I/O Module

  • Manufacturer : Mitsubishi Electric

  • Product No. : FX2N-4AD-PT

  • Product type : Input Block I/O Module

  • Description : Programmable Controllers, Input Block I/O Module

  • Channel : 4 CH Input

  • Input types : 3-wire platinum resistance thermometer sensor(s) Pt100

  • Compensated range : -100 to +600°C / -148 to +1112°F

  • Resolution : 0.2 to 0.3°C / 0.36 to 0.54°F

  • Digital Output : -1000 to +6000 (°C) / -1480 to +11120 (°F)

  • Accuracy : ±1% of full scale

  • Conversion time : 15ms / 1 channel

  • No. of Occupied Points : 8 I/O points

  • Applicable PLC : FX1N / FX2N / FX2NC / FX3U

  • Certifications : CE, UL/cUL

  • Dimensions (HxWxD), approx : 9cm x 5.5cm x 8.7cm

  • Shipping Weight : 3 Kg
